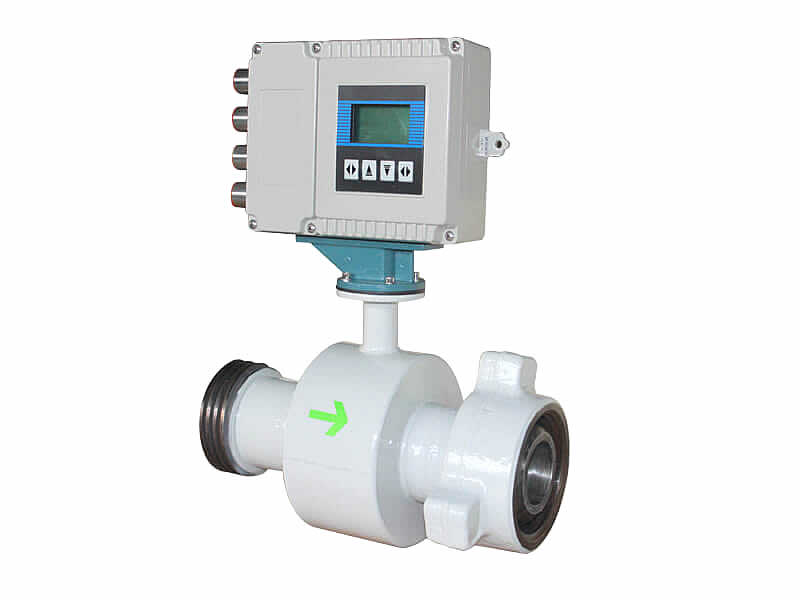

Union Connection Electromagnetic Flow Meter
- Size:DN10～DN300
- Output Mode:4~20 mA,pulse
- Electrode:SS316L,HC,HB,Tan,Ti,Pt
- Working Pressure:6.3、10、16、25、32MPa
- Connection :Union
Principle
Sanitary flow meter works based on Faraday's law, and measure conductive medium with conductivity more than 5 μs/cm and flow range from 0.2 to 15 m/s.
Union electromagnetic flow meter is sonsist of proprietary technological sensor and transmitter,it's mainly used to measure slurry,cement paste and high pressure water infusion in geology, oil exploration.
Application
According customers requirements,we can provide various electromagnetic flowmeters widely used following industries,
• Chemical
• Medicine
• Beverage
• Iron and steel
• Water supply
• Electricpower
• Water treatment
Features
• No moving partes,no pressure loss
• Accuracy:±0.2% of the measured value + 0.3m/s
• High accuracy for low flor rate and can measure duplex flow
• Double frequency excitation,stable zero point
• Built-in ground electrode,no need grounding ring
Installation Notice

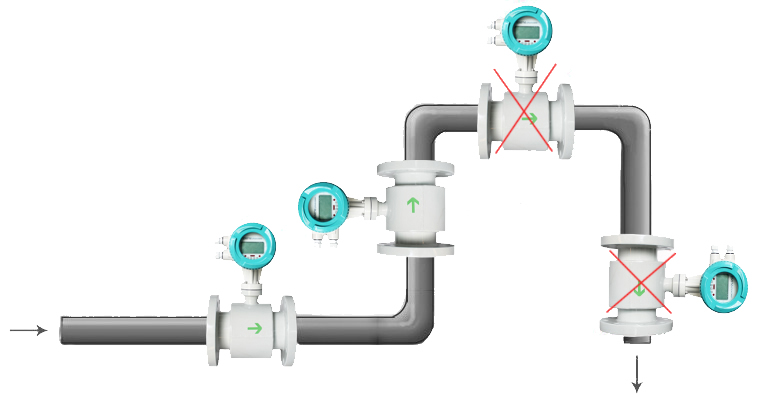

Installed at the lowest point and vertical upward direction Install exhaust valve at the downstreat of flow meter

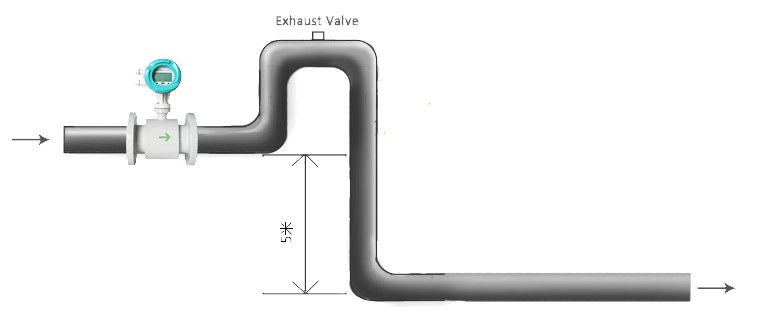

Don’t install at the highest point and vertical downward diection when drop is more than 5m

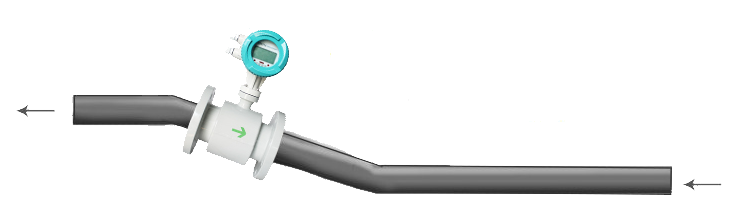

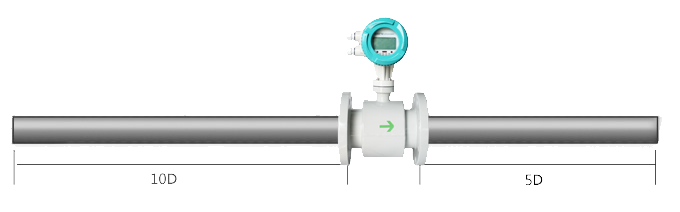

Installed at the lowest point when used in open drain pipe Need 10D of upstreat and 5D of downstreat
Dont’ install it at the entrance of pump, install it at the Installed at the rising direction
exit of pump
