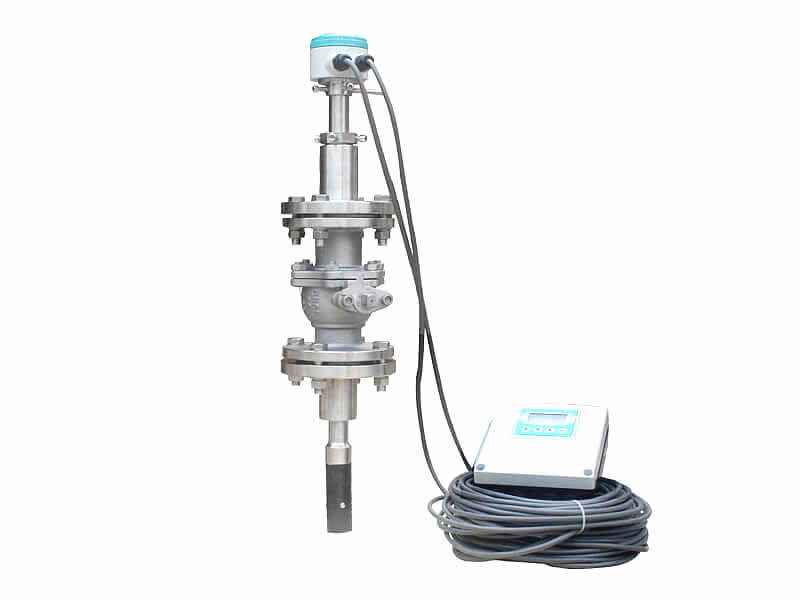

insertion type electromagnetic flow meter
- Working Pressure:1.6 MPa
- Protection Grade:IP68
- Accuracy:±0.5 of the reading value ≤ 0.5 m/s, ±1.0% when rate of full range ＞1 m/s
- Size:DN100-DN3000
- Medium Temperature:-25℃~60℃
Introduction
Insertion Electromagnetic flow meter is hallmarked by its high performance and reliability based on successful, field-proven technology. It is being widely used in industries such as petroleum, chemical engineering, iron and steel, food, electricpower, paper making, water treatment, petrochemical, medicine etc.
Features
♦ Medium temperature can be -20℃~80℃.
♦ Integrated vertification,diagnostic function and empty pipe detection.
♦ Measure forward and reverse direction flows.
♦ Easy to install and it can be installed without shutting down the process.
♦ Dual frequency excitation and stable zero point.
♦ Precision coil winding technology,makes magnetic field more uniform.
♦ High protection grade,IP65,IP68.
♦ No moving parts,no pressure loss

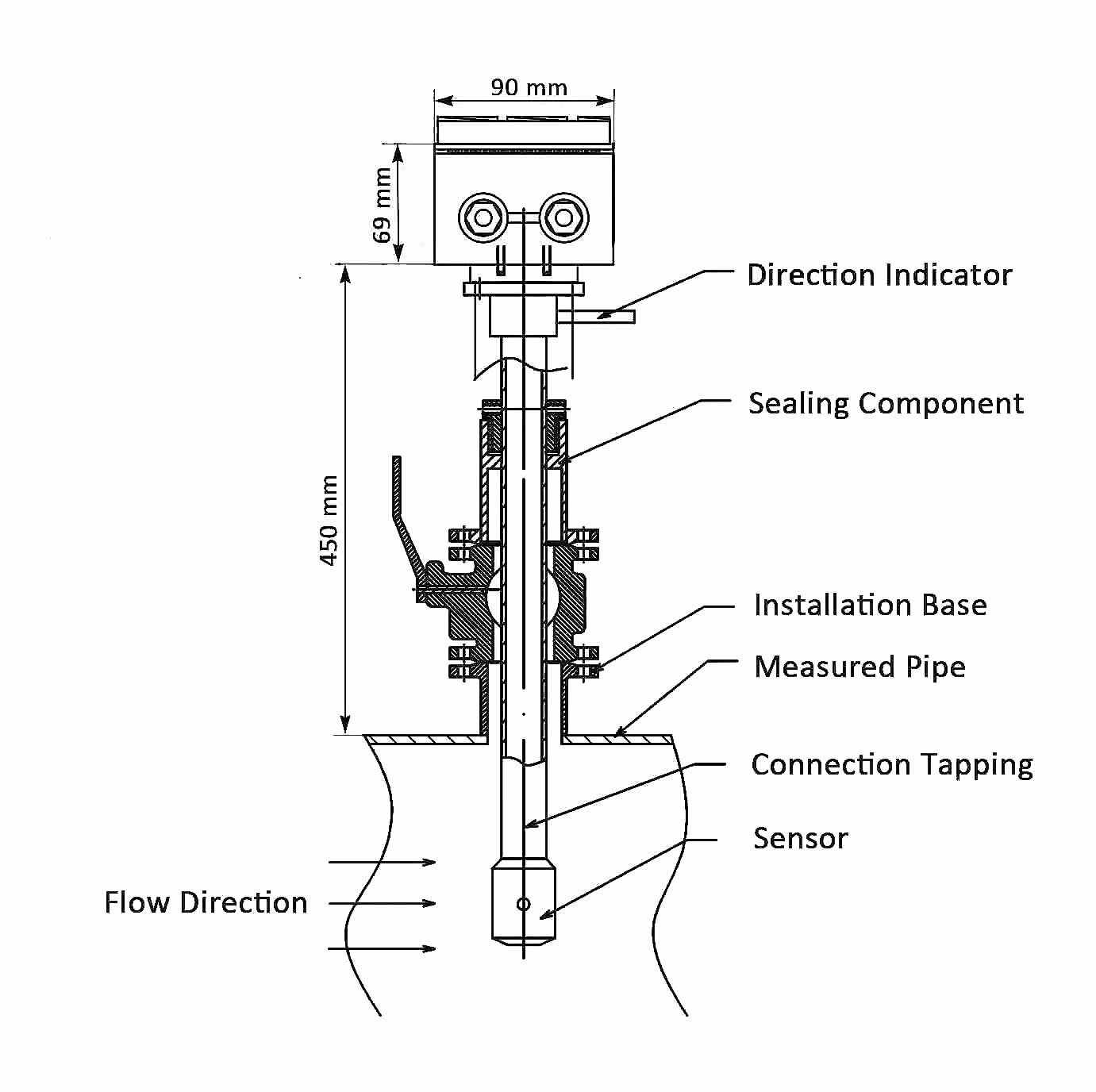

Installation Notice
Installed at the lowest point and vertical upward direction Install exhaust valve at the downstreat of flow meter
Don’t install at the highest point and vertical downward diection when drop is more than 5m
Installed at the lowest point when used in open drain pipe Need 10D of upstreat and 5D of downstreat
exit of pump

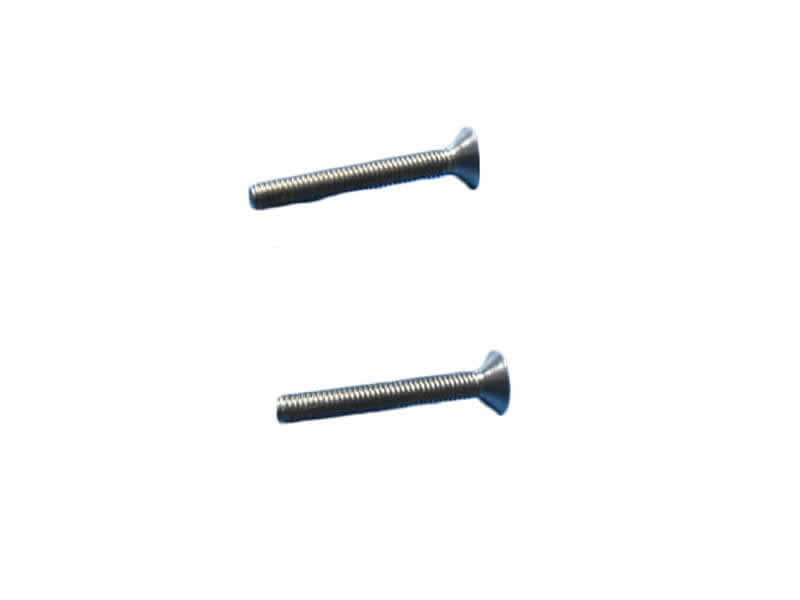

Performance of Electrodes
